รายละเอียดสินค้า:
|
| แสดงชื่อ: | จอแสดงผล TFT แบบบาร์ขนาด 3.9 นิ้ว | ปณิธาน: | 480x128 |
|---|---|---|---|
| มิติเค้าร่าง: | 103.20 (ส) x34.85 (วี)x2.4(ล) มม | พื้นที่ใช้งาน: | 95.04 (ส) x 25.34 (วี) |
| อินเทอร์เฟซ: | RGB | โหมดการแสดงผล: | TFT, ปกติสีดำ |
| ความส่องสว่าง: | 900 วัน/ตร.ม | การดูทิศทาง: | ทั้งหมด/ips |
| อุณหภูมิในการทำงาน: | -20 ถึง 70 องศา | อุณหภูมิในการจัดเก็บ: | -30 ถึง 80 องศา |
| ไอซีไดรเวอร์: | NV3047E | ||
| เน้น: | 3.9 inch bar type LCD display,480x128 resolution TFT module,RGB interface LCD driver IC |
||

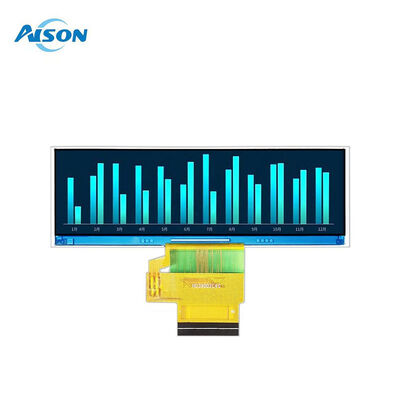

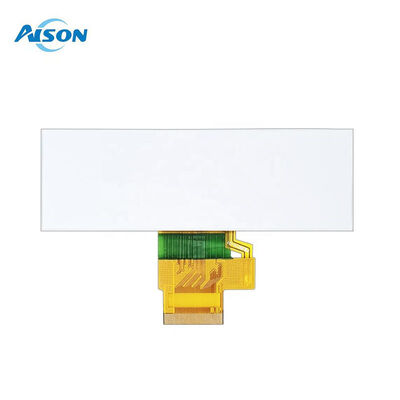

3.9 Inch Bar Type TFT LCD Display Module 480*128 Resolution RGB Interface Driver IC NV3047E
General Description
This is a new 3.9 inch Bar type color landscape IPSTFT LCD display with resolution 480x128 pixels. This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.
ZHD39001C30-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.9" contains 480 RGB X128 pixels and can display up to 16.7m colors.
This 3.9 inch bar TFT is built in with Driver IC NV3047E it supports RGB interface.This 3.9'' inch TFT LCD module boasts an impressive 900 nits luminance, ensuring crisp and clear visuals in various lighting conditions. Perfect for applications where visibility is crucial.It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
General Data
| Model Name | 3.9 inch Bar LCD Module |
| Resolution | 480x128 |
| Model Size (W*H*T)mm | 103.20 x34.85 x2.4mm |
| Display Area (W*H)mm |
95.04 (H) x 25.34(V)
|
| Interface | RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 900 cd/m2 |
| Pin number | 40 pin |
|
Contrast Ratio
|
1200:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 3.9" bar display offers high quality and colorful image; it is especially suitable for server system, audio system and advertising display, auto/aviation/marine equipment, POP, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.
